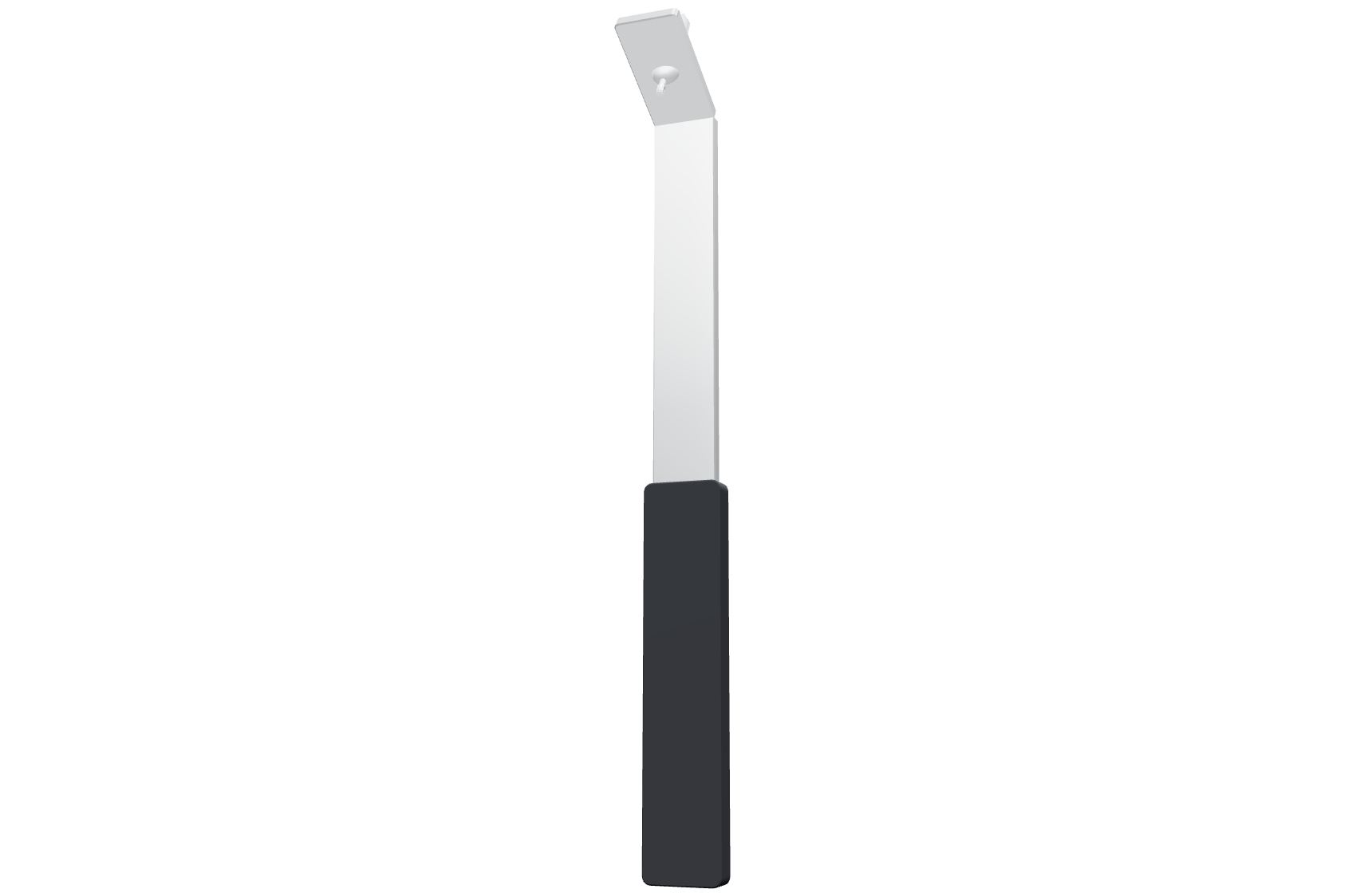

Hanger Buddy
Sets your hanger drops to spacing without re-measuring every one. One pass down the run, every drop on the money.
12″ HANDLE60° BENT TIPHAMMER-SET PIN
01 /
Spin it around
Viewer
STEEL
1″ band-iron body
12″ handle and bent tip cut from one piece of stock.
GRIP
6″ taped wrap
Wrapped up from the bottom so it stays put in a gloved hand.
HOLE
1/4″ through the bend
Centered in the 60° tip — catches the rod or wire.
PIN
Hammer-drive anchor
1/8″ head you strike, 3/8″ body that bites the deck.
PERSPECTIVE · DRAG TO ORBIT
LOADING MODEL…
STEEL
1″ band-iron body
12″ handle and bent tip cut from one piece of stock.
GRIP
6″ taped wrap
Wrapped up from the bottom so it stays put in a gloved hand.
HOLE
1/4″ through the bend
Centered in the 60° tip — catches the rod or wire.
PIN
Hammer-drive anchor
1/8″ head you strike, 3/8″ body that bites the deck.
02 /
How it works
1
Set your spacing once
Lay out the run a single time. The 12″ handle becomes your repeatable standoff for every drop after it.
2
Drive the lead pin
A few hits on the 1/8″ drive head sets the 3/8″ anchor into deck or concrete — no pre-drill shuffle.
3
Hook the drop
The 1/4″ hole in the 60° bend catches the hanger rod or wire and holds it right where you set it.
4
Move on down the run
Pull it, slide to the next mark, repeat. One pass — every drop on the money.
03 /
Cut from one piece
PROFILE · TO SCALE
HANDLE + NECK12″
BENT TIP2″ @ 60°
HOLE1/4″ · centered in bend
GRIP WRAP6″ from the bottom
LEAD PIN1/8″ head · 1/4″ hole · 3/8″ body
STOCK1″ × 0.16″ band iron
FINISHZinc pin · taped grip
HANGER BUDDY · CONCEPT PROTOTYPE · NOT TO MANUFACTURING SPECREV A
